A critical component of pedestrian safety that has gained prominence in recent years is the Rectangular Rapid Flashing Beacon (RRFB). Having expertise in traffic devices and strict adherence to the evolving standards, including the latest Manual of Uniform Traffic Control Devices (MUTCD) guidelines, positions raSmith as a trusted partner to help agencies implement the most effective safety measures.
Common Locations for RRFB Implementation

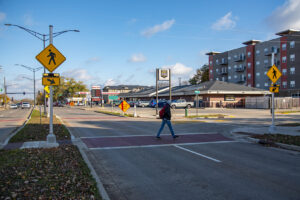

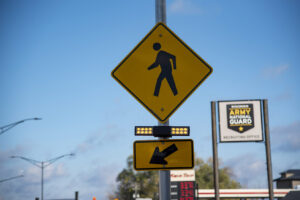

RRFBs have gained popularity as a highly effective pedestrian safety measure at uncontrolled, marked crosswalks, especially where visibility and driver yielding are concerns. Commonly used at mid-block crossings, unsignalized intersections, school and trail crossings, and even roundabouts, RRFBs utilize high-intensity, rapid flashing yellow LED lights to capture driver attention when a pedestrian activates the system.
Research shows that RRFBs can significantly increase driver yield rates compared to traditional active or passive yellow beacons and significantly reduce pedestrian crashes, with the greatest benefit on multi-lane roads with speed limits below 40 mph. RRFB devices are only installed where no stop or traffic signal controls exist, ensuring their conspicuous flash pattern is reserved for locations needing greater pedestrian protection. As more communities recognize their value, RRFBs continue to be implemented at a growing number of crossings to promote safer walking environments.
Supplemental Measures with RRFBs: Enhancing Pedestrian Safety
When implementing RRFBs, supplemental countermeasures can significantly enhance pedestrian safety and improve driver compliance, especially at uncontrolled crossings. Several treatments are recommended to work in tandem with RRFBs. These include curb extensions, which shorten crossing distances and improve pedestrian visibility; pedestrian refuge islands, which provide a safe waiting space on multi-lane roads; and raised crosswalks, which improve visibility and naturally calm traffic by elevating the crossing zone. High-visibility crosswalk markings (e.g., ladder patterns style) also enhance driver awareness, while advance warning signs—sometimes with additional RRFB units—are encouraged where sight distance is limited due to curves or obstructions.

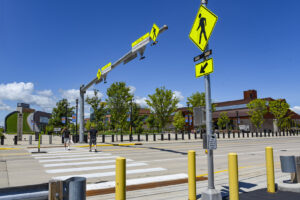

Physical improvements should follow Americans with Disabilities Act (ADA) accessibility standards and consider surrounding roadway geometry, volumes, and speeds. Proper lighting, overhead RRFB placement (where appropriate), and public education or enforcement programs can further reinforce yielding behavior. Used together, these tools not only align with MUTCD guidance but also create a layered safety approach that maximizes the effectiveness of RRFB installations in diverse roadway environments.
Understanding the Evolution of RRFBs: From IA-21 to the 11th Edition MUTCD
The journey of RRFBs in traffic control began with the issuance of Interim Approval 21 (IA-21) by the Federal Highway Administration in 2014. This interim approval allowed for limited, experimental use of RRFBs at pedestrian crossings, particularly in areas where traditional signage and signals were insufficient. IA-21 provided flexibility for early adopters, permitting both push-button activation and presence-based detection methods.
However, as the effectiveness of RRFBs was demonstrated through ongoing research and pilot programs, the MUTCD incorporated these devices as a fully standard safety tool in its 11th edition, published in 2024. The updated MUTCD sets forth comprehensive guidelines for the placement, operation, signage, maintenance, and accessibility of RRFBs, ensuring their safe and consistent deployment across jurisdictions.
Compared to the flexible, experimental approach under IA-21, the MUTCD now emphasizes precise standards, recommended spacing, and clear operational modes. It also underlines the importance of standardized signage and consistent maintenance practices—elements that are vital for realizing the full safety benefits of RRFBs.
The Role of PROWAG in Accessible Pedestrian Design
Alongside MUTCD standards, the Public Rights-of-Way Accessibility Guidelines (PROWAG) play a critical role in ensuring RRFB-equipped crossings are accessible to all users, including individuals with disabilities. Developed by the U.S. Access Board, PROWAG outlines design criteria for elements such as curb ramps, pushbuttons, and detectable warnings. Compliance ensures features such as accessible pedestrian signals, proper button placement, and tactile/audible cues are integrated into each installation. By adhering to both MUTCD and PROWAG, agencies deliver pedestrian crossings that are not only highly visible and effective in improving safety but also inclusive and usable for everyone, in line with ADA obligations.
Final Thoughts
The transition from IA-21 to the current MUTCD standards underscores the importance of standardized, proven traffic control devices like RRFBs. Proper implementation based on current guidelines can dramatically reduce pedestrian accidents and improve overall road safety.
